SwitchBot windows · exact hardware
Choose the right motor for curtains or roller shades
Curtain 3 moves an existing curtain panel; Roller Shade is a complete shade in a specific size and colour. The room, fabric and opening style determine the real quantity and variant.
The answer in 60 seconds
Choose by window covering mechanics first: curtain rail, rod, roller tube, dimensions, load and available mounting space determine the motor.
Good fit when
Existing curtains or roller shades whose exact hardware and travel path match the motor’s compatibility rules.
Poor fit when
A purchase based on room count before measuring every rail, rod, tube and obstruction separately.
Canadian reality
Cold windows and heavy lined curtains can increase resistance; test free manual movement before motorizing.
Decision checklist
Five checks to complete before shopping
- Identify rod, U-rail or I-rail hardware and confirm the exact compatibility dimensions before choosing Curtain 3.
- Weigh the curtain panel and count panels; a centre-opening pair normally needs two motors.
- Measure the window and confirm the exact Roller Shade width, drop, colour and mounting clearance.
- Plan charging access or a compatible solar accessory without blocking normal manual operation.
- Confirm whether Matter control is needed and which compatible SwitchBot hub supplies it.
Use the evidence
Turn measurements into a defensible shortlist
Record
Write down the real environment and the exact task before looking at brands.
Eliminate
Remove every model that fails a hard size, surface, safety or power constraint.
Verify
Match the exact Canadian model identifier with official evidence; a similar name is not enough.
Compare
Only then compare convenience, maintenance, privacy, support and ownership cost.
Read product evidence correctly
Four sources, four different jobs
RoboStead does not blend specifications, outside tests, owner reports and Canadian availability into one vague score.
Use it for dimensions, limits, required accessories, safety and exact identity.
Use them for observed performance only when the exact model and method are stated.
Use repeated themes to spot long-term friction; do not treat one complaint as a measured failure rate.
Use them for the seller, warranty, parts, power, currency, shipping and winter reality.
Real-life decision paths
Three situations that can change the answer
Find the situation closest to yours, follow its direction, then use the reason to decide whether that constraint deserves priority.
A retrofit curtain motor can be the shortest path to scheduling and light control.
Good mechanics let the motor automate movement instead of fighting friction.
Measure the tube and mounting space; do not substitute a curtain motor for a roller-shade motor.
The two products act on different mechanisms even though both automate a window covering.
Fix rail friction and test the full travel by hand before sizing motors or buying pairs.
Automation will expose every snag repeatedly and may shorten battery life when movement is not free.
Exact products in this setup
Compare the hardware before opening the partner store
The names, photos, variants and reference prices below describe the exact products checked by RoboStead. Prices are displayed in both currencies to avoid confusing the Canadian and U.S. storefronts.
Robot / motor
SwitchBot Curtain 3
Clip-on curtain motor for a single curtain panel. The displayed price is for one Rod Type 1 unit; a centre-opening pair needs two units.
- Handles curtains up to 15 kg
- QuietDrift mode as low as 25 dB
- Check rod or rail compatibility before ordering
Robot / motor

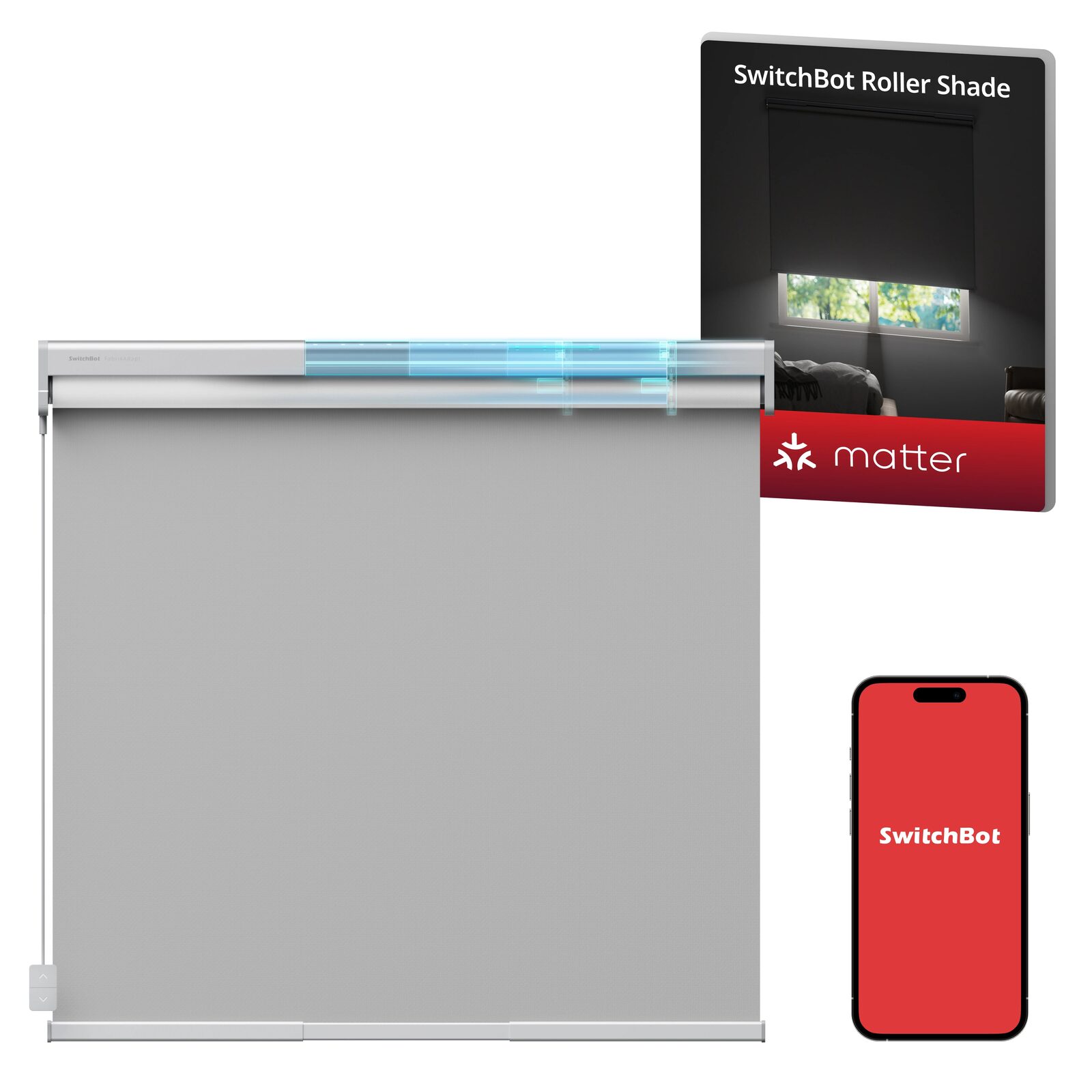

SwitchBot Roller Shade — S, Grey
Motorized grey roller shade in size S for window widths from 58 to 80 cm. Other sizes, colours and solar bundles have different prices.
- Displayed price: size S, grey, one unit
- Up to 8 months per charge; optional solar panel
- Matter integration requires SwitchBot Hub 2
Paid CJ Affiliate links open each exact Canadian SwitchBot product page in a new tab. Confirm the current package, shipping, warranty and return terms before paying; commission never changes the editorial order.
Common Canadian questions
Questions to settle before making the choice
Can the same motor automate curtains and roller shades?
No. Choose hardware for the exact rail, rod or roller-tube mechanism and measure every opening separately.
Do wide curtains need two motors?
It depends on opening direction, layout, load and exact product limits. Do not infer motor count from width alone.
Should I motorize a curtain that is already hard to move?
Fix the mechanical resistance first. A motor is not a repair for a bent rail, tight carrier or obstructed path.
Primary evidence
Official sources checked for this guide
These links support the exact products, limits or Canadian conditions discussed on this page. A retailer page can confirm a purchase route, but it does not replace manufacturer evidence for a technical claim.
Found a changed specification? Send the exact source to our editorial team.
Fail-closed warnings
Two mistakes that can invalidate the choice
- Do not assume one Curtain 3 motor moves both panels of a centre-opening curtain.
- Do not confuse the price of an accessory or one size option with the complete shade variant you need.
Before checkout
Verify the Canadian variant after the CJ redirect
Confirm the country, exact product name, SKU, selected size or colour, shipping charge, Canadian warranty and return terms before checkout. The displayed CAD and USD amounts are references that the live price service refreshes when the official storefront is reachable.
